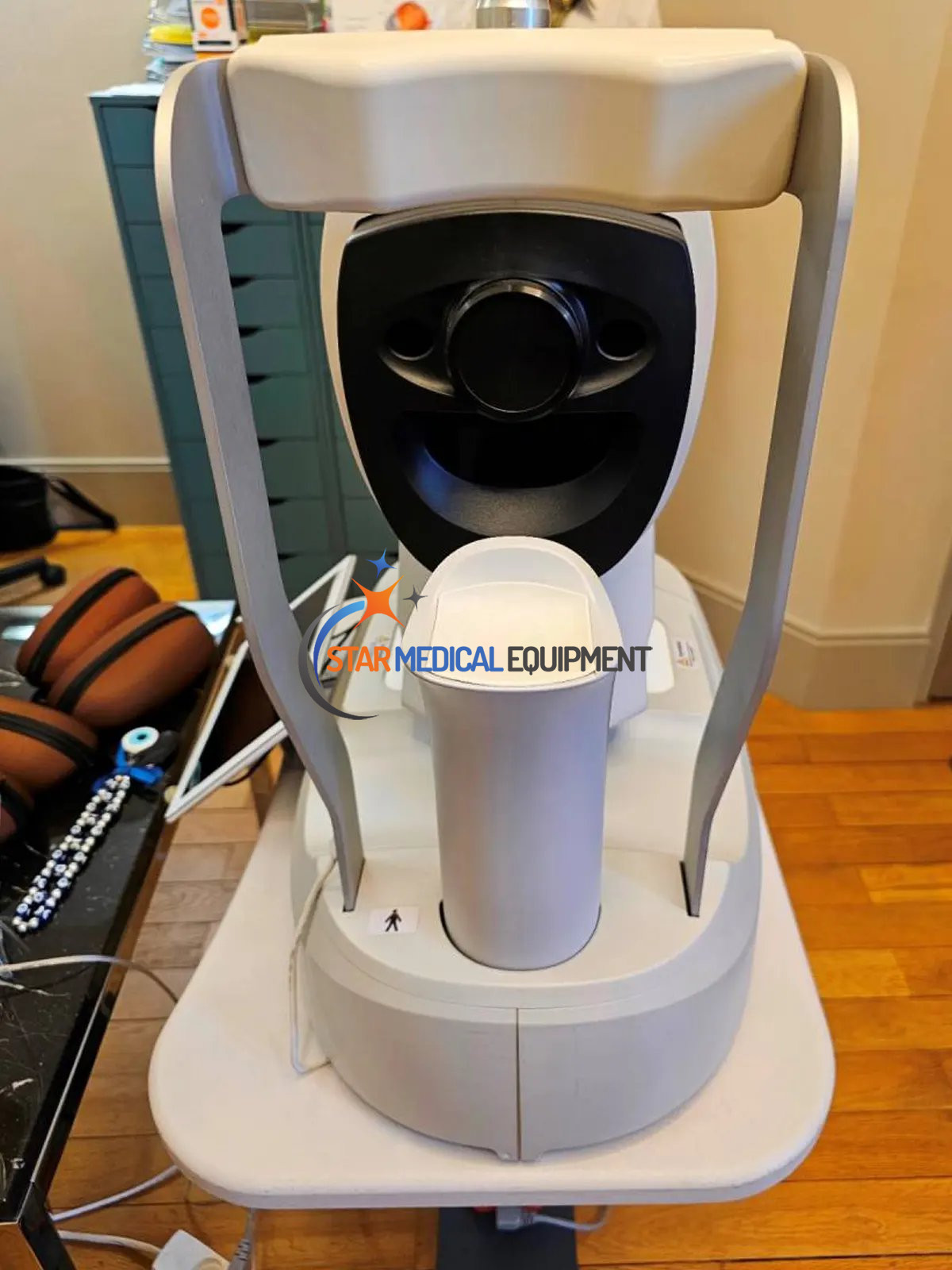

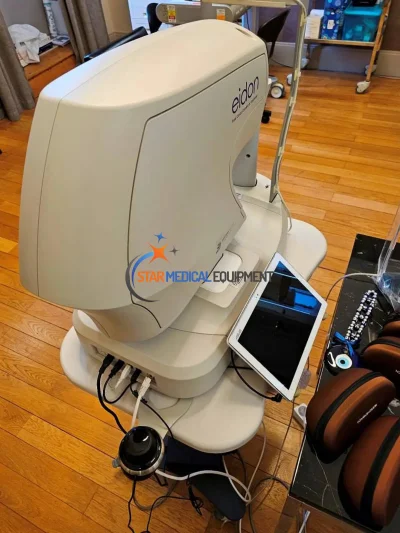

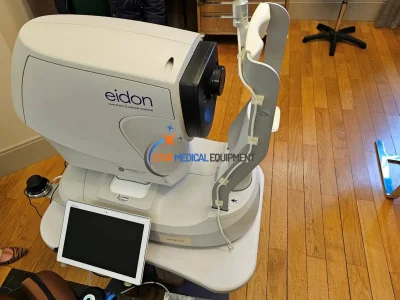

iCare EIDON Widefield TrueColor Confocal Fundus Imaging System
iCare EIDON Widefield TrueColor Confocal Fundus Imaging System
- Used Condition
- Genuine Product
- Manufacturer Warranty
- Technical Support
- Worldwide Shipping

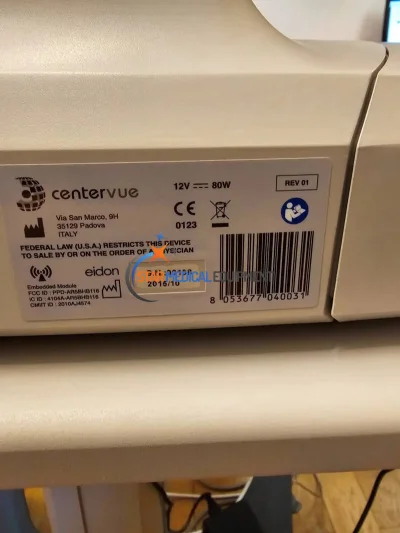

Up for sale a used iCare EIDON Widefield TrueColor Confocal Fundus Imaging System, this item was manufactured on October 2015. Tested and in good working condition. Comes with a 30-day money back guarantee. We take responsibility until the packages reach destination with protected, robust wooden crating system and shipped worldwide.
The Centervue EIDON device stands as an advanced retinal imaging technology, providing unparalleled resolution for in-depth retinal analysis. With its innovative dual confocal and non-mydriatic sensor system, the EIDON captures high-resolution images in both color and autofluorescence, offering crucial insights into retinal health without the need for prior pupil dilation.
This compact and ergonomically designed EIDON facilitates seamless integration into ophthalmology practices, ensuring user-friendly operation and swift image acquisition. Leveraging its wide-field photography capabilities, the Centervue EIDON enables comprehensive retinal assessment, supporting early detection of conditions such as age-related macular degeneration (AMD) or glaucoma. Furthermore, the EIDON's advanced image tracking and analysis functionalities streamline precise monitoring of anatomical changes over time. In essence, the Centervue EIDON stands out as a cutting-edge solution for retinal imaging, combining technical prowess, user-friendliness, and diagnostic precision
Key features
- Multiple imaging modalities including TrueColor, blue, red and Red-Free and infrared confocal images
- Widefield, ultra-high-resolution imaging
- Capability to image through cataract and media opacities
- Dilation-free operation (minimum pupil 2.5 mm)
- Flexibility of fully automated and fully manual mode
- All-in-one compact design, no additional PC required
iCare EIDON Confocal Scanner Specifications
| Fundus Imaging System Features |
Non-mydriatic |
Minimum pupil size 2.5 mm |
| Field of view (measured from the center of the eye) |
Individual image | 90° |
| Mosaic (up to nine images) | Up to 160° | |
| Sensor resolution | 14 Mpixel (4608 x 3288) | |
| Light sources | White LED | 440 - 650 nm |
| Infrared LED | 825 - 870 nm | |
| Imaging modalities | TrueColor | |
| Infrared | ||
| RGB channels separation (digital filters) | ||
| Other features | Working distance | 28 mm |
| Automatic operation | Auto-alignment, auto-focus, auto-exposure, auto-capture | |
| Auto-focusing adjustment range | -15D to +15D | |
| Resolution | 60 pixel/deg | |
| Optical resolution on the retina | 15 microns | |
| Pixel pitch | 4.9 micron | |
| Fixation targets | Internal/External | |
| Dynamic Programmable Internal Fixation Target | Central, Nasal, Temporal, Central-Nasal, Superior, Inferior, Superior-Temporal, Superior-Nasal, Inferior-Temporal, Inferior-Nasal | |
| Internal computer | Display | Tablet operated, with multi-touch, color display |
| Hard drive | 480 GB Solid State Drive (SSD) | |
| Interfaces | Available ports: USB port x 2, Gigabit Ethernet Port x 1 | |
| Export/Import | jpeg, pdf, DICOM (optional) | |
| Power supply | Related Voltage | 100-240 VAC |
| Frequency | 50-60 Hz | |
| Power consumption | 80 W | |
| Electrical Class | IEC 60601-1 Class I | |
| Dimensions / Weight | Size (W x H x D) | 360 x 590 x 620 mm (14.2 x 23.2 x 24.4 in.) |
| Weight | 25 Kg (55 lbs) | |
