Optos

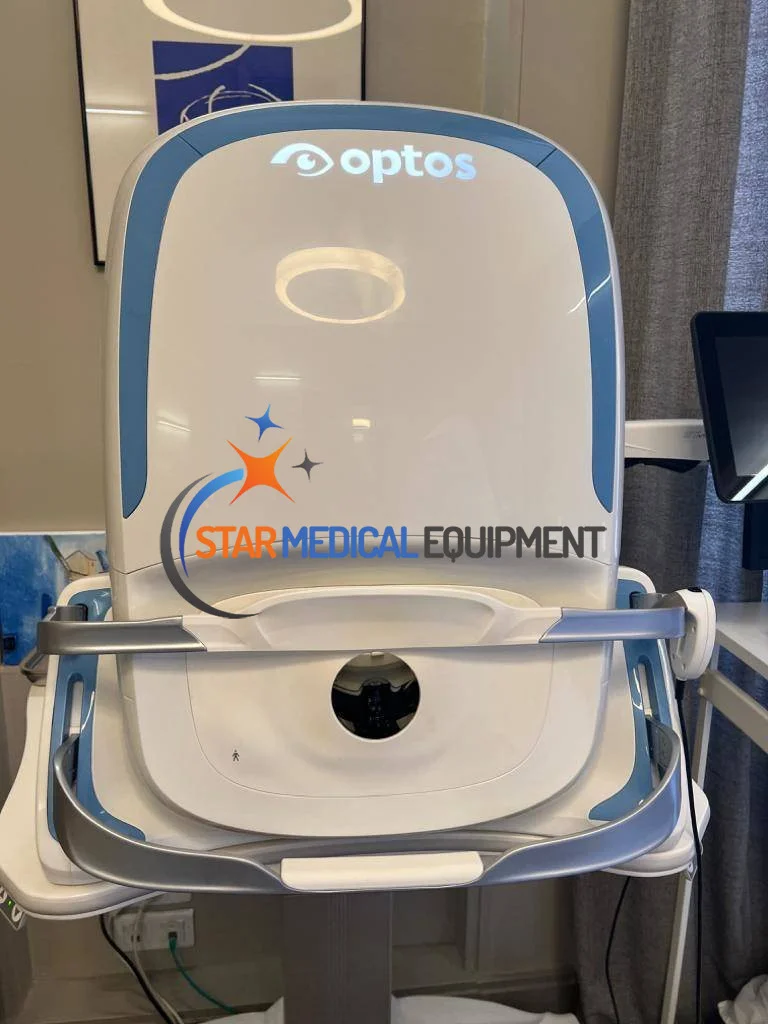

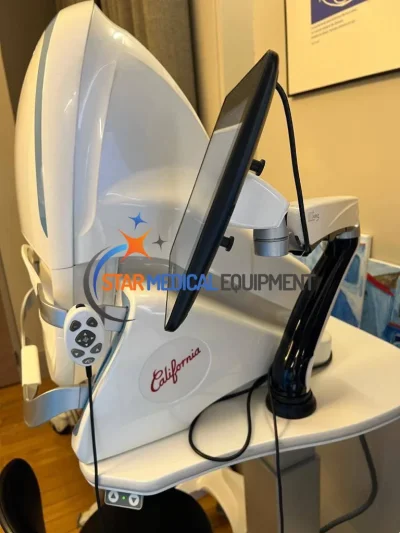

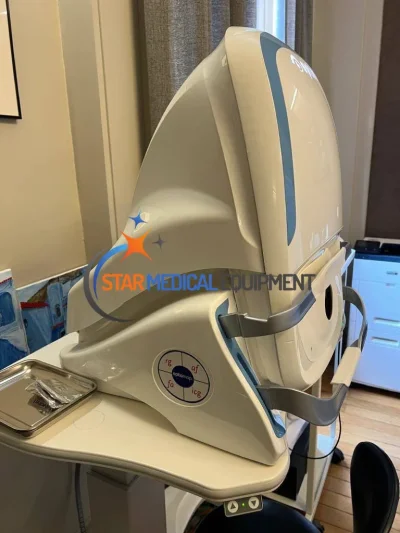

Optos California ICG Retinal Imaging System

Optos California icg P200DTx Ultra-widefield Retinal Imaging System

Price: 32,000USD
  • Used Condition
  • Genuine Product
  • Manufacturer Warranty
  • Technical Support
  • Worldwide Shipping
PRODUCT DESCRIPTION

Up for sale a used Optos California icg P200DTx Ultra-widefield Retinal Imaging System. , this item was manufactured on October 2017. Tested and in good working condition. Comes with a 30-day money back guarantee. We take responsibility until the packages reach destination with protected, robust wooden crating system and shipped worldwide.

Features and Benefits

  • Non-mydriatic imaging of the retina in less than ½ second saves time and helps improve clinic flow
  • cSLO technology images through most cataracts and small pupils (2 mm)
  • 3-in-1 Color Depth ImagingTM provides important clinical data from the retinal surface through the choroid
  • Green laser autofluorescence shows macula and optic nerve head detail
  • Image overlay tool facilitates comparison of images in different image modes and from visit to visit

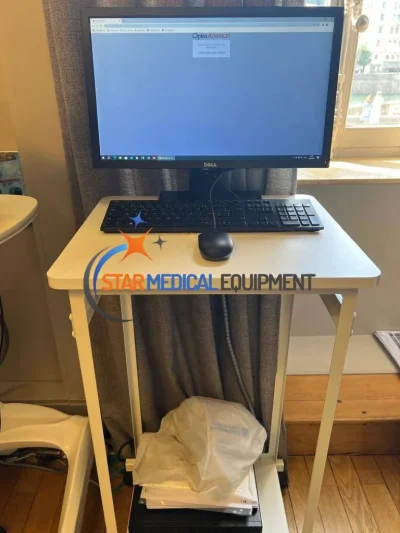

  • Browser-based image review offers easy, HIPAA-compliant access to data from any connected PC or tablet
  • Distance (mm) and area (mm2 ) measurements provide objective assessment of change over time
  • Interweaved angiography saves time by enabling capture of FA and ICG in the same session
  • Stereo disc imaging allows assessment of the optic nerve to diagnose and follow the progression of glaucoma
  • Auto-montage combines an optomap series into a single image showing up to 220° (97%) of the retina

Optos California icg Specifications

IMAGING MODALITIES Color rg (red and green laser) Yes
Color rgb (red, green, blue laser) Yes
Sensory Retina Yes
Choroidal (red laser) Yes
Green Autofluorescence Yes
Blue Autofluorescence Yes
Fluorescein Angiography Yes
icg Angiography Yes
RESOLUTION Optomap plus 14 μm
Optomap 20 μm
LASER WAVELENGTHS Red laser 635 nm
Green laser 532 nm
Blue laser 488 nm
Infrared laser 802 nm
EXPOSURE TIME Less than 0.4 seconds
TRIM COLOR Aqua
DEVICE DIMENSIONS (W x D x H) 550 x 550 x 608-632 mm (22 x 22 x 24-25 in)
WEIGHT 34 kg (75 lbs)

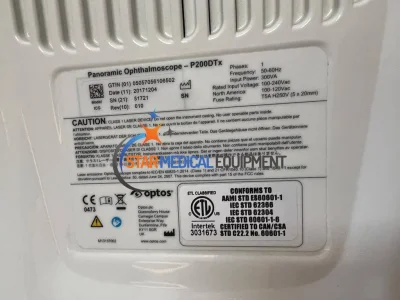

LASER CLASS Laser safety class-1 following EN60825-1:
2014 and 21 CFR1040.10 and 1040.11
SYSTEM VOLTAGE 100-240Vac, 50/60Hz
POWER CONSUMPTION 300VA
COMMUNICATION PROTOCOL DICOM Compatible
